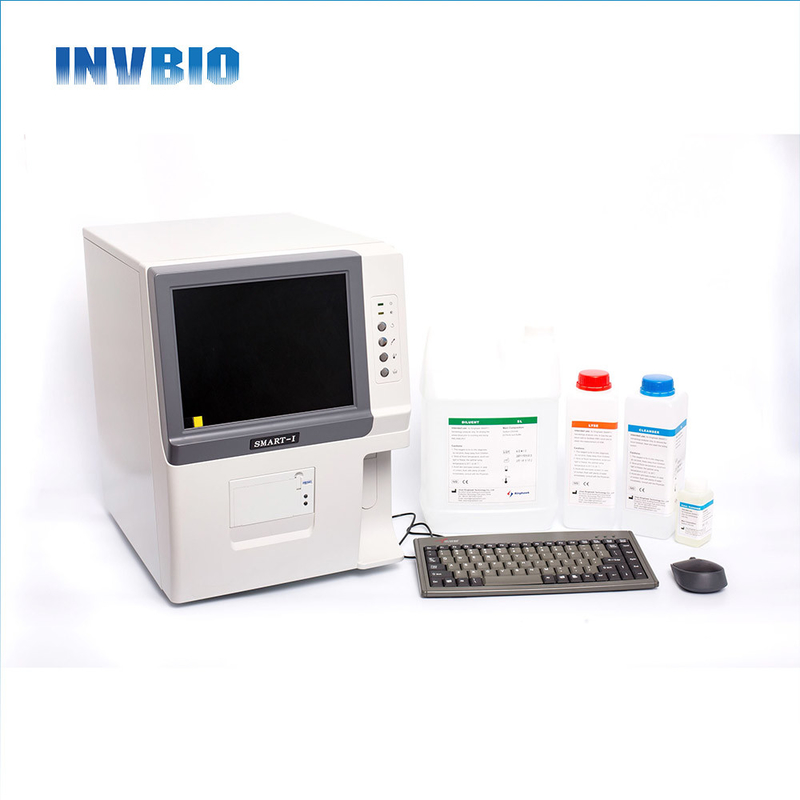

Auto Blood Test Machine CBC Machine Hematology Analyzer Price Hematology
Features
High Stability & Accuracy
Use the most advanced binuclear embedded digital circuit system, to make the analytical ability great and stable
2 counting channels of WBC and RBC, to make the test results more accurate and less cross- contamination
Use CPLD technology in data processing, to avoid the interference of electromagnetic signals
Reliable Operation System
Windows CE system
ARM intelligent micro-processing technology
Data analysis: intelligent pulse formulation technology
Classification: floating landmark technology
Module design, fast maintenance
User-friendly System
10.4’’ large color LCD displays main menu and all parameters & color histograms in one screen
Brief operation instruction built-in software, easy for user to view
Separate module design, very simple mechanical structure, easy maintenance
Self check for hardware, alarm for error
Reagent depletion alarm for Lyse, Cleanser and Diluent, as optional function
Technical Features
2 counting mode: whole blood, pre-dilution blood
Sample pre-dilution: internal diluter, add 1ml diluent automatically by the needle, no need to add diluent manually to avoid deviation.
Calibration: automated or manual
QC: comprehensive QC program, forming and printing the histogram automatically
Block removal: Real time monitor, high ignition, soak, flush and back flush
Technical parameters
| Principle |
Electrical impedance for counting and SFT method for hemoglobin |
| Parameters |
WBC, LYM#, MID#, GRA#, LYM%, MID%, GRA%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, and 3 Histograms for WBC, RBC and PLT |
| Throughput |
Up to 60 samples per hour |
| Sample Volume |
Whole blood: 9μl, Pre-dilution blood: 20μl |
| Aperture Diameter |
WBC: 80μm
RBC: 50μm
|
| Alarms |
Error messages |
| Display |
10.4’’ large color LCD |
| Storage |
10,000 sample results including histograms, available to increase storage by expanding memory card |
| Printout |
Built-in thermal printer, various print-out formats; external printer optional |
| Input |
Mouse and keyboard, connected by USB port |
| Interface |
USB x3, RS232 x2 |
| Working Conditions |
Temperature: 15-35℃, Humidity: ≤80%
Atmospheric pressure: 70Kpa-106Kpa
Power supply: AC220V±22V, 50±1Hz
|
| Dimension |
325x370x545mm(L*W*H) |
| Weight |
16Kg(net), 23Kg(gross) |
| Size of packaging carton |
62*42*57CM |
